Post #1 · Posted at 2025-03-01 06:12:21pm 2.8 months ago
After extensive research and preservation efforts, I want to share
the projects I’ve been working on.
It’s still a WIP, there are several songs missing, so if you have any
information or assets related to the game, I’d really appreciate your help!
Song Packs:

Dance Station 3DDX
(original and D-TECH series)

Dance Super Station 4DSS
(also known as 3DDX 5 D-TECH)
Special thanks to M3NK3K for helping me find resources and testing the simfile conversion.
Call for Contributions:
Please DM me or post in this thread if you have any resources to share. This preservation effort is still ongoing, and every piece of information matters!
Valuable information include:
• Official songlists
• Game assets
• Screenshots or gameplay footage
• Arcade recordings
• Or anything else you consider useful for this project
Information could refer to Dance Station 3DDX, Dance Station Stepper, or Digital Dance Station. Even the files used by Dance Station 3DDX D-TECH Viewer program (.mp/.dat/.alz) could be very useful.
Context:
The Dance Station 3DDX was a dance rhythm game developed by the Korean company NGG (Next Generation Games) and released in 2000, containing 34 songs. The game featured 4 foot pads (↙️↖️↗️↘️) and 4 hand sensors (⬅️⬇️⬆️➡️), which was pretty innovative back in that time. It supports 3 game modes: EASY, HARD and CLUB (doubles). The 3D in the name comes from the inclusion of hand sensors, while DX stands for "deluxe," referring to the game’s cabinet with a massive 52-inch screen. There was also SOLO version of the game (with just one dance pad) sold with a SX cabinet.


In 2002, NGG released a sequel titled Dance Station 3DDX 2 D-TECH, adding 26 new songs to the Korean version. The game modes were renamed as PRETTY STEP (easy), POWER STEP (hard), and DUAL STEP (double). Both the 3DDX and D-TECH were distributed via CD according to the specs. An international version was also released, featuring additional songs. However, due to the lack of online records, most of these songs remain unknown, but a few pictures from the CZ community show that the banners were translated into English (e.g. “경고” being shown as “Caution” in the international version). It is likely that some of these songs later appeared in other rhythm games released by NGG ouside Korea.
NGG also tried to release a "non-deluxe" version called Dance Station Stepper (with a SX cabinet), which later got a Windows port. This game was meant to compete with other dance rhythm games of its time (specifically with PIU). Initially, the arcade version featured a 5-panel layout (↙️↖️⏹️↗️↘️), but the Windows home version later introduced support for a 4-panel mode (⬅️⬇️⬆️➡️) and included a mini-game that uses all 9 panels. The AC version had four regional variations: Korean, American, Indonesian, and Brazilian.


NGG also released another Windows game focused in the US market, Digital Dance Station, which was essentially a home version of Dance Station Stepper based on a DDR'99 simulator (with .msd files, and supports DDR/PIU modes), and includes most of the Dance Station 3DDX tracks. The game was sold with its own dance mat, and supports 4 play modes (single, versus, double, and couple) in 3 difficulties (BASIC, ANOTHER, and MANIAC).


The 3DDX game style went really popular in China, and after NGG went bankrupt around 2004, the Chinese company AAM (Advanced Amusement Machines) started developing Dance Station 3DDX 3 D-TECH. Most of the videos you’ll find online today refer to this version. The Dance Station 3DDX 4 D-TECH is a complete mistery, but some videos suggest that certain songs later appeared in 4DSS — e.g., in this video appears 成人礼, a variation of the original 성인식 (Adult Ceremon) by Park Ji-yoon, with a longer intro and the chinese banner.

In 2007, the same Chinese company released a bootleg version called Dance Super Station (4DSS, Passional), built on the StepMania 3.9 engine and sold as an "upgrade" of the D-TECH serie. As a result, some cabinet artwork referred to it as Dance Station 3DDX 5 D-TECH instead of DSS, and the original 3DDX/D-TECH hard drive was replaced, likely lost forever. The cabinet used for DSS was the same as the original D-TECH version but with a new marquee and painted in green. The game supports 4 modes: EASY, HARD, CLUB (double), and introduced a new game mode called REMIX (which only includes long version songs). The initial release included 119 songs, followed by two patches that added 20 additional songs.

Following the rise in popularity of the 3DDX style in China, the company Xiongye started developing a new bootleg called King of Dancer (舞王争霸), a franchise that eventually had three releases. The cabinet from the first release resembles a purple D-TECH version but was redesigned as of the second release, introducing a touchscreen display, freeze arrows, and a front camera that shows you dancing in the background while playing. There isn't much information about this game online but it looks like a bunch of 3DDX and 4DSS songs were included in this game (check this video). The franchise also has a 5-panel variant with no hand sensor (let's say a PIU bootleg) called King of Dancer X.


All of these cabinets began to disappear in 2010 after the release of D-Dance Master (D舞达人), also developed by AAM, having 200 songs and popularly referred to as Dance Master Station, which was later rebranded as e-Dance Fame (e舞成名, or simply known as E5). With the addition of online upgrade support, it is also known as E5Online. Similar to KOD, the cabinet also features a touchscreen display and the game supports freeze arrows, but also introduced a 5th center foot pad (↙️↖️⏹️↗️↘️) alongside the 4 hand sensors (⬅️⬇️⬆️➡️). A SOLO version of the cabinet was also released, and most of its songs are unlicensed or "borrowed" from other rhythm games.


The game’s still very popular in China, receiving monthly updates, currently having more than 5K songs. There are 6 game styles: FANCY (for freestyle players), SPEED (for score players), PARTY (for beginner players), DIY (for custom charts), and WEF (for online competition). After selecting the style, the game offers 6 modes: EASY, HARD, DEVIL (heavy), CLUB (double), LOVER (couple), and REMIX (long version songs). Some songs and modes are exclusive to VIP members through a paid card-based system — similar to the AM PASS or Konami’s e-Amusement Pass.
There's a StepMania-based simulator for E5 called E5MNQ. By subscribing, you gain access to a wide selection of song packs, which include audio, banners, and empty stepcharts. As your subscription remains active (and not banned like mine 😅), the simulator can download the actual stepcharts on the fly when you select a song. However, these simfiles don’t support hand sensors, making it essentially a PIU simulator with an E5 with an up-to-date songlist (because also receives monthly updates). This limitation comes from the StepMania build used in the simulator, which doesn’t support E5 mode — a feature later introduced in OutFox (ds3ddx-single5 and ds3ddx-double5).

In 2021, AAM also released a home version of this game called Dance Home E5+, which includes a dance mat, a 3D camera for motion tracking, a remote control, and a USB stick containing the game. The game preserves the original arcade E5 game modes and the same library with over 5K songs, which step charts are downloaded on the fly once a song is selected to play.

In 2025, the cabinet for E5 was rebranded with a new dance pad and the removal of the top structure for the hands tracking, which now seems to be tracked by software using a camera like the E5+ Home Version (not so accurate for score players). Also introduced a new game mode named DYNAMIC, aimed for freestyle players (as seen in this video), which curiously resembles Konami's Dance Evolution.

Just to clarify, Dance Station 3DDX, Dance Super Station (4DSS), Dance Master Station (E5), and King Of Dancer (KOD) are all different games, even though their cabinets look pretty similar. The only game known to be based on StepMania is 4DSS, the rest of them have their own engine.
In summary:
Game Developer Hands Center Holds Platform
─────────────────────────────────────────────────────────────────────────────
DS 3DDX NGG (KR) ✅ ❌ ❌ AC
DS 3DDX 2 D-TECH NGG (KR) ✅ ❌ ❌ AC
DS 3DDX 3 D-TECH AAM (CN) ✅ ❌ ❌ AC
DS 3DDX 4 D-TECH AAM (CN) ✅ ❌ ❌ AC
DS 3DDX 5 D-TECH / 4DSS AAM (CN) ✅ ❌ ❌ AC
DS Stepper NGG (KR) ❌ ✅ ❌ AC / CS*
Digital DS NGG (KR) ❌ ✅ ❌ CS*
E5 AAM (CN) ✅ ✅ ✅ AC
E5+ AAM (CN) ✅ ✅ ✅ CS
E5MNQ ??? (CN) ❌ ✅ ✅ CS
KOD, KOD2 & KOD3 Xiongye (CN) ✅ ❌ ✅ AC
KOD X Xiongye (CN) ❌ ✅ ✅ AC
Dancing2008 PikoMonkey (CN) ✅ ❌ ❌ AC?
─────────────────────────────────────────────────────────────────────────────
*supports 4 and 5 pads
About the Song Packs:
The Dance Super Station 4DSS pack was recovered directly from an arcade dump, specifically from the .pk files (a zip-like file), with the stepcharts already in .sm format and includes original banners, music, and videos. The pack includes the base song list (119 songs), and also two patches (adding 40 new songs).
The Dance Station 3DDX pack was converted from a dump of a Chinese bootleg called 手舞足跳2008 (Dancing 2008) (by PikoMonkey). This is essentially a reskin of 3DDX D-TECH that preserved the original music, stepcharts, and most banners (some with modified backgrounds). The stepcharts are defined in .mp files (a proprietary format) and were converted to .ssc to handle songs with BPM changes across difficulties.
About MP file format:
This binary file format seems to have been introduced with the D-TECH release of 3DDX, and it's likely used in other bootleg or unofficial versions of the game as well. It stores metadata, timing info, and note data.
FILE HEADER (248 bytes)
OFFSET SIZE CONTENT
─────────────────────────────────────────────────────────────
0x00 20 Signature "3DDX 2ndStep" (string)
0x14 148 Song audio file name (string)
0xA8 40 Song title (string)
0xD0 40 Song artist (string)
0xF8 36 Chart header (see below)
CHART HEADER (36 bytes)
OFFSET SIZE CONTENT
─────────────────────────────────────────────────────────────
0x00 8 Initial BPM (double)
0x08 8 Audio offset in ms (double)
0x10 8 Difficulties (uint32)
Positions:
• 0 Easy (single)
• 1 Hard (single)
• 2-3 Easy (versus)
• 4-5 Hard (versus)
• 6-7 Dual (double)
0x18 2 Padding (null bytes)
0x1A 4 Unkown values (bytes)
0x1E 4 First note offset in ticks (uint32)
0x22 2 Padding (null bytes)
NOTE DATA (48 bytes per note)
OFFSET SIZE CONTENT
─────────────────────────────────────────────────────────────
0x00 8 Segment BPM (double)
0x08 8 Stop duration (double)
0x10 8 Unknown values (bytes)
0x18 16 Column flags (see values below)
0x28 2 Next note offset in ticks (uint16)
0x2A 2 End flag (00=continue, FF=end)
0x2C 4 Next chart offset (uint32)
COLUMN FLAGS (uint16 values)
VALUE DESCRIPTION
─────────────────────────────────────────────────────────────
0x0301 Left Hand (←)
0x0501 Down Left Pad (↙)
0x0601 Up Left Pad (↖)
0x0101 Up Hand (↑)
0x0201 Up+Down Hands (↑↓)
0x0001 Down Hand (↓)
0x0701 Up Right Pad (↗)
0x0801 Down Right Pad (↘)
0x0401 Right Hand (→)
NOTES
• Notes are defined in 52th (instead of standard 48th)
• Numbers are encoded in little-endian format
• Strings are encoded in EUC-KR
Dance Station 3DDX D-TECH Viewer:
A freeware program that allows users to practice ds3ddx at home back in the 2000s. This program spacifically reads .dat files, which are essentially a concatenation of .mp (step charts) and .mp3 (audio) files, and those .dat files were commonly shared among users in .alz archives (a Korean zip-like format) sometimes accompanied by additional segmented files with extensions like .a00, .a01, etc.


Some files can be found at /nggworld (Daum) but unfortunately many of the official files haven't been preserved. Some known but now unarchived examples include ozings' links and nggworld's links. If you come across any of these files on the Wayback Machine or any other website, I’d really appreciate if you share them.
References:
• Dance Station 3DDX (by NGG)
• Dance Station 3DDX 2 D-TECH (by IceZero)
• Dance Station 3DDX 3 D-TECH (by Ez2Dance)
• Dance Station 3DDX (GAMICUS article)
• Dance Station 3DDX (Arcade Museum article)
• Dance Station 3DDX (Namu Wiki article)
• Dance Station 3DDX (CoinExpress publication)
• Dance Station 3DDX (ChannelBeat publication)
• Dance Station 3DDX D-TECH (ChannelBeat publication)
• Dance Station 3DDX (Czech MusicGames post)
• Dance Station 3DDX (Czech Community post)
• Dance Station 3DDX (Livejournal, Stasie post)
• Dance Station 3DDX (BeatmaniaIIDX website, Stsung post)
• Dance Station Stepper (Kotaku screenshots)
• Dance Station Stepper (Windows game, by NGG)
• Digital Dance Station (by NGG)
• Dance Super Station (by ANZHENG)
• Dance Master Station E5 Online (by AAM)
• Dance Master Station E5 Online (Baike Baidu)
• Dance Master Station E5 Online (2025 version) (Bilibili introduction video)
• Dance Home E5+ (by AAM)
• King of Dancer (by Xiongye)
• King of Dancer 2 (by Xiongye)
• King of Dancer 3 (by Xiongye)
• King of Dancer (Baike, Baidu)
• King of Dancer (ChannelBeat publication)
• King of Dancer 2 (Wenky Baidu)
Post #2 · Posted at 2025-03-01 07:07:39pm 2.8 months ago
![]() | |
---|---|
![]() |
Member |
648 Posts | |
![]() | |
Reg. 2006-05-27 | |
Ooooh! We use to have a Dance Station 3DDX cab in the UK nearby in the early 2000s, I remember playing Genie In A Bottle
I won't be able to play on pad/with sensors, but I'm looking forward to seeing these! good work


Post #3 · Posted at 2025-03-08 04:30:17pm 2.5 months ago
Quote: Air12567
Ooooh! We use to have a Dance Station 3DDX cab in the UK nearby in the early 2000s, I remember playing Genie In A Bottle
I won't be able to play on pad/with sensors, but I'm looking forward to seeing these! good work


Thanks! Hope you enjoy it
I was able to play 3DDX just once around 2007 in my country, and since then I wished to port it into SM. I remember to play "Mambo No.5" as my first song and didn't clear it 😅 Hope somebody out there could have more resources or information to keep expanding this project.
Post #4 · Posted at 2025-03-17 07:44:50am 2.2 months ago
![]() | |
---|---|
![]() |
Member |
1 Post | |
Not Set | |
Reg. 2025-03-17 | |

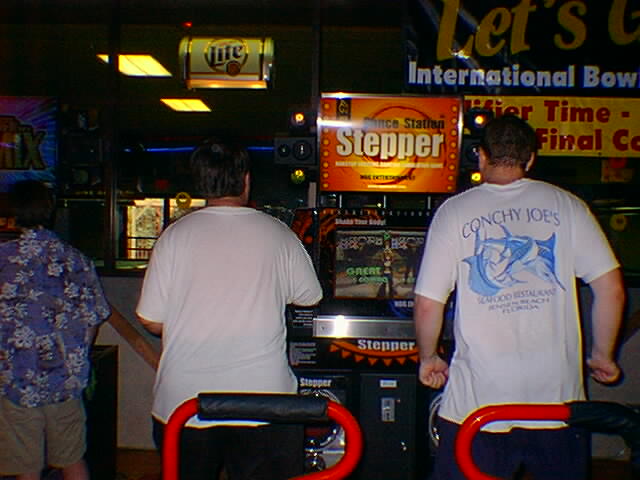

I just uploaded a batch of pictures such as
taken at IBA (a.k.a International Bowl Arcade a.k.a. International Bowling and Arcade) from August 10th, 2001. My batch starts at image id 67753 and goes through 67767. For the record, they had 7 dance machines in a row - a very primitive DDR (probably O.G, maybe USA?), 3rd Mix Korean v2, Dance Station Stepper, and 4 Pump It Up Cabinets. I'd been trying to remember the name of this game for years. I finally excavated these pictures and found the name... which immediately led to this post, so hopefully this helps.
I definitely can say that our cabinet had the DJ Doc's classic "Run to You" as well as a version of "Tarzan Boy". We also definitely played WAY more DDR 3rd Mix Kv2, so it's quite possible that I didn't even play every song on that machine.

I definitely can say that our cabinet had the DJ Doc's classic "Run to You" as well as a version of "Tarzan Boy". We also definitely played WAY more DDR 3rd Mix Kv2, so it's quite possible that I didn't even play every song on that machine.

Post #5 · Posted at 2025-05-03 04:48:48am 3.1 weeks ago
Wow. It wasn't a myth at all. Thanks for sharing!
I found the data from the Windows version of Dance Station (though I’m not sure whether it's the Stepper or Digital version). According to Kotaku's article the banner I got matches the Stepper version, but who knows how reliable that source is. The data is in encoded .msd files (predecessor to .dwi) with some customization to support pump mode. Sadly, I only have a 10-second preview of the songs.
I hope someone out there still has a copy of it.
---
Just for the record, I added the spec of the .mp file format (used by the D-TECH version) in the first post.
I'm still trying to find the .dat files (which act as containers for the .mp and .mp3 files) that were shared by the Korean community back then, but no luck so far. The PC versions of the game sold by NGG in Korea (Dance Station 4th) and in the USA (Digital Dance Station) may contain many of the missing audio files. If anyone has them or know where can I find them, DM me.
Also, I noticed that King of Dancer 2 includes several songs from the D-TECH series (as seen in this video), so a copy of that game could be very helpful as well.
I found the data from the Windows version of Dance Station (though I’m not sure whether it's the Stepper or Digital version). According to Kotaku's article the banner I got matches the Stepper version, but who knows how reliable that source is. The data is in encoded .msd files (predecessor to .dwi) with some customization to support pump mode. Sadly, I only have a 10-second preview of the songs.
I hope someone out there still has a copy of it.
---
Just for the record, I added the spec of the .mp file format (used by the D-TECH version) in the first post.
I'm still trying to find the .dat files (which act as containers for the .mp and .mp3 files) that were shared by the Korean community back then, but no luck so far. The PC versions of the game sold by NGG in Korea (Dance Station 4th) and in the USA (Digital Dance Station) may contain many of the missing audio files. If anyone has them or know where can I find them, DM me.
Also, I noticed that King of Dancer 2 includes several songs from the D-TECH series (as seen in this video), so a copy of that game could be very helpful as well.
Post #6 · Posted at 2025-05-23 02:40:52pm 1.5 days ago
![]() | |
---|---|
![]() |
Member |
1 Post | |
Not Set | |
Reg. 2025-05-23 | |
Thanks,bro.I had enjoyed play these pack and enjoyed your good work that takes me back to my unforgettable memory.
However I got those problems meets:
Missing simfile:Girl(E,H,C),Hitsong(E,H,C),ICEBABY(E,H,C)
Missing Songs:纯情(E,H),精舞门(E,H),眉飞色舞(H,C),美丽新世界(E,H,C),绿光(E,H,C),动感音乐DJ(H)
Incorrect Media and simfile:本草纲目(E,H,C)
General Problem:
Remix song are unplayable,Maybe is in a case of simfile problem.
Background Video aspect ratio should be in 4:3.
Some songs displays song background incorrectly.
Other Problem:
Some songs still missing while downloading full pack,and some song simfiles completely missing file names.
Also I had used arcade dump to make noteskins working fine.(Not so perfect yet.)
However I got those problems meets:
Missing simfile:Girl(E,H,C),Hitsong(E,H,C),ICEBABY(E,H,C)
Missing Songs:纯情(E,H),精舞门(E,H),眉飞色舞(H,C),美丽新世界(E,H,C),绿光(E,H,C),动感音乐DJ(H)
Incorrect Media and simfile:本草纲目(E,H,C)
General Problem:
Remix song are unplayable,Maybe is in a case of simfile problem.
Background Video aspect ratio should be in 4:3.
Some songs displays song background incorrectly.
Other Problem:
Some songs still missing while downloading full pack,and some song simfiles completely missing file names.
Also I had used arcade dump to make noteskins working fine.(Not so perfect yet.)
Post #7 · Posted at 2025-05-23 09:36:58pm 1.2 days ago
![]() | |
---|---|
![]() |
Member |
62 Posts | |
![]() | |
Reg. 2008-10-06 | |
Hey! Thanks for pointing that out.
It seems I messed up when I first uploaded the files (too many songs 😅). I've just upload the missing/incorrect songs and made a repack. The zipping option is provided by ZIV in the simfile category and should work, but I’m not sure how reliable it is (mostly because of the chinese characters). If you're still having issues, I can try another alternative.
Just to clarify, the song you labeled as "动感音乐DJ" is actually 现在跳舞 by 动感音乐DJ.
As for the remix songs, they’re defined with Challenge difficulty, what do you mean by unplayable? Are they not loading at all?
Idk about the issues you're having with the bg videos, might it be a problem with your StepMania/OutFox setup?
It seems I messed up when I first uploaded the files (too many songs 😅). I've just upload the missing/incorrect songs and made a repack. The zipping option is provided by ZIV in the simfile category and should work, but I’m not sure how reliable it is (mostly because of the chinese characters). If you're still having issues, I can try another alternative.
Just to clarify, the song you labeled as "动感音乐DJ" is actually 现在跳舞 by 动感音乐DJ.
As for the remix songs, they’re defined with Challenge difficulty, what do you mean by unplayable? Are they not loading at all?
Idk about the issues you're having with the bg videos, might it be a problem with your StepMania/OutFox setup?
